Recoil Start & Self Start ,Oasis UL-5000is,5 KVA Genset
5 KVA Genset, Ultra-Light Weight, Digital Invertor Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
Gives a Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2%
To get more Power to Run Heavy Equipment, 2 or More UL-5000is Generator can be made to Run In Parallel, Two UL-5000isi Generators in Parallel will produce 4 KVA + 4 KVA = 8KVA Power
Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in IT Sector / Remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, All types of Modern House Hold Electrical and Electronic Appliances Like Refrigerator Microwave, Induction Plate, Automatic Washing Machine, 1.5Ton, Inverter AC, For charging Battery Inverters, for all types of Frequency & Voltage sensitive Equipment’s, Military & Powering Defense Equipment’s Etc.
Product Information
| *Max AC. Output VA | 5000 | |
| *Rated AC. Output VA | 4000 | |
| Rated Current Amps | 17.3 | |
| NFB Amps | 19 | |
| AC. Voltage | 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2% | |
| Alternator Type | Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation | |
| Invertor | 100 KHz, IGBT Based Digital Invertor – 4 Kw | |
| Engine | Model | HM172P |
| Type | OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling | |
| Maximum Power | 8 HP @ 3600 | |
| Bore x Stroke | 72x58 mm | |
| Displacement | 240 cc | |

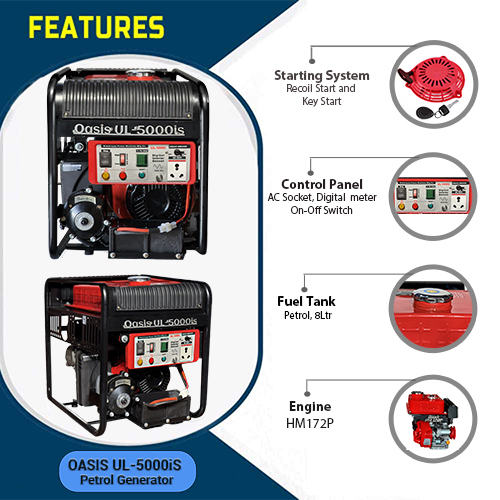

| Starting System | Recoil Start & Self Start | |
| Governor | Electronic Governor (Load Sensitive – Variable Speed) Engine RPM 2200 (No Load) to 3800 RPM (at Full load) |
|
| Fuel | Petrol or LPG (Optional) | |
| Fuel Tank Capacity | Petrol -8 Ltr. | |
| Fuel Consumption | Petrol 1.5 ltr/hr, Approx. LPG: 850gm |
|
| Lube. Oil Capacity | 600 ml. | |
| Lubricating Oil Consumption | 2.5 gm./Hr. | |
| Sound level (Db) (from 1 meter) | <86Db | |
| Continues Running (With One Filling) | 6 Hrs. Approx. | |
| Panel & Other Standard Features |
Multifunction Digital Meter & Indicator | Digital Control Panel (V, Hz, Amp) |
| Oil Alert System | Yes | |
| Over Load Indicator | Yes | |
| 2 Genset Paralleling Capability | Yes, With Extension Control Box (Optional at Extra Cost) | |
| LPG/ Gas Fuel Compatibility | Yes | |
| AMF Panel Auto & Remote Start Compatibility | Yes (Optional) | |
| Fuel Level Gauge | Yes | |
| AC On /Off, Overload Protection (NFB) | Yes | |
| Electronic Over Load Protection | Yes, Inbuilt with Inverter | |
| Packing | Weight Appprox (Kg) | 37 Kg |
| Dimension LxWxH (mm) | 532 x 415 x 515 mm | |
| Lithium Battery 12.8V - 15 Ah | 192 x 87 x 83 mm | |
| Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation | ||
